How Did the Ceiling Fan Evolve?

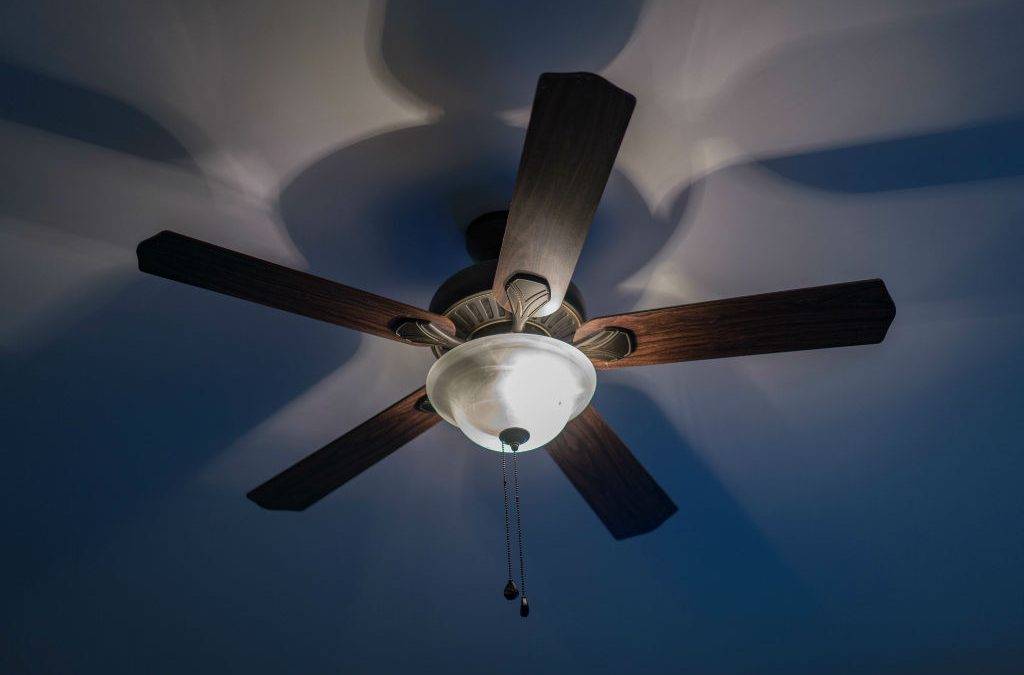

A five-blade wooden ceiling fan with an integrated light fixture casts distinct shadows on a blue ceiling, illustrating the comfort provided by ceiling fans and their evolution.

Table of Contents

Feeling hot and sticky in a stuffy room is uncomfortable.

You want relief, but running the air conditioner all day is expensive.

A simple ceiling fan can solve this problem effectively.

The first electric ceiling fan was invented by Philip Diehl in 1882.

He adapted the electric motor he had designed for sewing machines and mounted it on the ceiling, creating a new way to circulate air and provide comfort in homes and businesses.

This simple invention has a long and interesting story.

It changed how people stay cool and comfortable.

Let’s explore the journey of the ceiling fan, from its simple beginnings to the smart, stylish models we use today.

The Early History of Fans

Before electricity, staying cool was hard work.

People in hot climates needed ways to move air, but their options were limited.

The only solution was a fan powered by a person.

The earliest fans were simple, handheld items or large, swinging frames.

The punkah fan, used in India around 500 BC, was a large frame covered in cloth or palm leaves.

Servants would pull a cord to swing it back and forth, creating a gentle breeze for royalty.

The idea of a fan is ancient, dating back thousands of years.

Early civilizations used basic tools to create airflow for comfort.

These first fans were often symbols of wealth and status because they required manual labor.

From Handheld to Mechanical

The first fans were not very efficient.

They depended on a person to keep them moving.

This meant that only the very wealthy could afford to have a constant breeze.

  • The Punkah: This fan was a major part of life for the elite in India and other hot regions for centuries. It was a simple machine, but it was a luxury. A servant, often called a punkah-wallah, would sit and pull the rope for hours to keep the air moving. This shows that the need for a cool environment has always been important.

  • Early Rotary Fans: The first step towards a more modern fan came from China. Around 180 AD, an inventor named Ding Huan created a manually operated rotary fan. This device had seven large wheels, each about 10 feet in diameter. A single person could turn a crank to make all the wheels spin, moving a large amount of air. It was a big improvement, but it still needed a person to power it.

  • Water-Powered Fans: In the 1860s and 1870s in the United States, before electric motors were common, some businesses used a different kind of power: running water. A turbine spun by water would drive a system of belts and pulleys. These belts would connect to several fans, making their blades turn. You could find these systems in places like restaurants and stores. They were a clever way to automate fans before electricity was available.

These early fans show a clear progression.

People started with simple, handheld fans.

Then, they developed more complex human-powered machines.

Finally, they used natural power sources like water to create a more consistent airflow.

Each step brought people closer to the convenient, electric fans we know today.

Who Invented the Electric Ceiling Fan?

Manually powered fans were a lot of work.

Relying on servants or water turbines was not practical for everyone.

People needed a more convenient and personal cooling solution for their homes.

The first electric ceiling fan was invented by Philip Diehl in 1882.

He took an electric motor from a sewing machine, attached fan blades to it, and mounted the entire unit on the ceiling.

This was the first self-contained, electrically powered ceiling fan.

The invention of the electric fan was a major turning point.

It happened in a short period in the late 19th century, thanks to the work of a few key inventors.

Their ideas took the fan from a manual luxury item to an everyday electrical appliance.

The story involves adapting existing technology in a new and creative way.

The Key Inventors

The journey to the electric ceiling fan involved a couple of important steps.

It wasn’t just one person’s idea, but a series of improvements that led to the final product.

  • The First Electric Fan: Before the ceiling fan, there was the first electric table fan. An American engineer named Schuyler Skaats Wheeler invented it in 1882. He took a small electric motor and attached a propeller with two blades. It was a simple design, often called a “buzz fan,” but it was the first time an electric motor was used to create a personal breeze. This laid the groundwork for all future electric fans.

  • Adapting the Motor: The person who gets credit for the ceiling fan is Philip Diehl, a German-American engineer. He was already working with small electric motors at the Singer sewing machine company. He saw the potential to use this motor for something else. In 1882, the same year Wheeler invented the table fan, Diehl mounted his adapted sewing machine motor onto a ceiling. This was a critical step because it created a fan that was out of the way and could circulate air throughout an entire room.

  • Adding More Features: Diehl didn’t stop with just the fan. He continued to improve his invention. A few years later, he created a light kit that could be attached to the fan. This combined two essential fixtures—a light and a fan—into one unit. This innovation was very practical and became a standard feature on many ceiling fans for years to come.

The invention of the electric ceiling fan was not a single event.

It was a process of innovation.

Wheeler showed that electricity could power a fan.

Diehl then took that concept, adapted a different motor, and put it on the ceiling, creating the appliance we recognize today.

The Evolution and Rise in Popularity

A new invention is not always an instant success.

Early ceiling fans were a great idea, but they needed time to become a common household item.

Economic changes and new technologies would shape their future.

Ceiling fans became common in the United States in the early 20th century.

Their popularity fell in the 1950s with the rise of air conditioning.

But, they made a big comeback during the 1970s energy crisis because they used much less power than AC units.

The journey of the ceiling fan is a story of ups and downs.

It reflects changes in technology, the economy, and consumer tastes.

Over the decades, the fan changed from a simple machine into a stylish and efficient appliance.

A Timeline of Popularity

The ceiling fan’s popularity has shifted a lot over the last century.

Here is how it happened.

  • Early 1900s – 1920s: After their invention, ceiling fans quickly became popular in businesses like stores and restaurants. By the 1920s, they were a common feature in American homes, especially in the South where the weather was hot. During this time, the design also improved. Fans went from having two blades to four, which made them quieter and better at moving air.

  • The 1950s Decline: The invention of modern air conditioning in the 1950s was bad for the ceiling fan industry in the U.S. People who could afford it preferred the powerful cooling of an AC unit. For a while, ceiling fans were seen as old-fashioned. However, they became very popular in other parts of the world with hot climates, like India and the Middle East, where AC was too expensive.

  • The 1970s Comeback: The energy crisis of the 1970s changed everything. The cost of electricity went up, and people started looking for ways to save energy. Ceiling fans were the perfect solution. They used much less energy than air conditioners but still helped people feel comfortable. This renewed interest led to new improvements in motor technology, making fans even more efficient.

  • The 2000s and Beyond: Since the 1980s, ceiling fans have remained popular. Manufacturers started to focus more on design. Today, fans are not just functional appliances; they are decorative items. They come in countless styles, finishes, and sizes to match any home decor. Technology has also continued to advance, with super-efficient motors and smart features.

How Does a Ceiling Fan Work?

It’s easy to see that a ceiling fan’s blades spin.

But how does that spinning motion make you feel cooler?

It’s not magic, it’s just a bit of science.

A ceiling fan works by moving air.

The motor turns the blades, which are angled to push air in a specific direction.

This moving air creates a “wind-chill effect” on your skin, which helps your body’s natural cooling process by making sweat evaporate faster.

Understanding how a fan works helps you use it more effectively.

A key thing to know is that a fan does not actually lower the temperature of the room.

It only makes you feel cooler.

This is an important difference.

It means you can save energy by turning the fan off when no one is in the room.

The mechanism is simple, but its effect on comfort is significant.

The Science of Cooling

The way a ceiling fan works can be broken down into two main ideas: the mechanics of moving air and the effect that moving air has on your body.

Summer and Winter Modes

Most modern ceiling fans are reversible.

This means you can change the direction the blades spin.

This feature allows you to use your fan to help with both cooling and heating.

  • Summer Mode (Downdraft): In the summer, you want the fan to blow air straight down. To do this, the blades should spin counter-clockwise. This creates a direct breeze on you, which is the wind-chill effect. This breeze helps you feel cooler. Because you feel cooler, you can set your air conditioner’s thermostat a few degrees higher and save energy.

  • Winter Mode (Updraft): In the winter, you want the fan to help circulate the warm air in the room without creating a breeze on you. To do this, the blades should spin clockwise at a low speed. This pulls the cooler air from the floor up towards the ceiling. This then pushes the warm air that has naturally risen to the ceiling down along the walls and back into the living space. This process mixes the air in the room, making the overall temperature more even. It can help you feel warmer, allowing you to lower your heater’s thermostat.

The Wind-Chill Effect

This is the most important concept to understand about how a fan cools you.

Your body naturally cools itself by sweating.

As sweat evaporates from your skin, it takes heat with it.

A ceiling fan’s moving air speeds up this evaporation process.

The constant airflow whisks away the thin layer of warm, moist air that surrounds your body, allowing more sweat to evaporate.

The faster the evaporation, the cooler you feel.

The fan isn’t changing the room’s temperature, but it is making your body’s cooling system work much better.

This is why a fan in an empty room is just wasting electricity—there is no one there to feel the effect.

Modern Ceiling Fans and Their Types

You want to buy a fan, but the choices are overwhelming.

With so many styles and features, how do you pick the right one?

You can find the perfect fan by learning about the different types available.

Today’s ceiling fans are very diverse.

You can find everything from simple, standard fans to high-tech smart fans.

There are also designer models, fans with lights, super-efficient fans, and special fans for outdoor spaces or rooms with low ceilings.

The world of ceiling fans has expanded far beyond the basic models of the past.

Technology and design have advanced to meet almost any need or preference.

Whether you prioritize energy efficiency, style, convenience, or function, there is a type of fan made for you.

Knowing the options helps you make an informed choice.

A Fan for Every Room

Modern ceiling fans can be grouped by their features and purpose.

Here are some of the most common types you will find.

  • Standard Fans: These are the most common and basic fans. They usually have three to five blades and are controlled by a pull chain. They are a reliable and affordable choice for most rooms.

  • Designer Fans: For people who see a fan as a decorative piece, designer fans offer unique styles, materials, and finishes. They can be a centerpiece for a room, with unique blade shapes or elegant designs that match a specific decor.

  • Fans with Lights: Many fans come with a built-in light kit. This is very practical because it combines two fixtures in one, which is great for rooms with only one electrical box in the ceiling. The lights can range from simple bulbs to elaborate chandeliers.

  • BLDC Motor Fans: These fans use a Brushless Direct Current (BLDC) motor. This is a newer, very energy-efficient technology. BLDC fans use up to 70% less energy than standard fans. They also run very quietly and tend to have a longer lifespan.

  • Smart Fans: These fans connect to your home’s Wi-Fi. You can control them with a remote, a smartphone app, or even your voice using a smart home assistant. You can set schedules, change speeds, and control the light from anywhere.

  • Hugger Fans: Also known as low-profile fans, these are designed for rooms with low ceilings (under 8 feet). They are mounted flush against the ceiling without a downrod, which provides safe clearance.

  • Outdoor Fans: These fans are built to withstand the elements. They are rated as either “damp” for covered porches or “wet” for areas exposed to rain. Their parts are resistant to moisture and rust.

  • Commercial Fans: These are large, powerful fans designed for big spaces like warehouses or gyms. They have long blades and strong motors to move a massive amount of air.

Choosing the Right Fan Size for Your Room

If you buy a fan that is too small, it won’t move enough air.

If it’s too big, it might create an unpleasant gale.

Getting the size wrong means you won’t get the comfort you want.

To choose the right fan, you must match the fan’s size to the size of your room.

Key factors to consider are the room’s area in square feet, the height of the ceiling, and the fan’s blade span.

Picking the right size fan is the most important step to ensure it performs well.

It’s not just about how the fan looks; it’s about physics.

A properly sized fan will circulate air efficiently and quietly, providing optimal comfort.

An improperly sized fan will be a constant disappointment.

How to Measure for a Fan

To find the perfect fan, you need to consider a few key measurements and factors.

Room Size

The size of your room, measured in square feet (length times width), is the first thing to check.

This will determine the fan’s diameter, also known as its blade span or sweep.

A larger room needs a fan with a larger blade span to move air effectively.

Here is a general guide:

Room Size (Square Feet)Recommended Fan Size (Diameter)
Up to 75 sq. ft.29 – 36 inches
76 – 144 sq. ft.36 – 42 inches
145 – 225 sq. ft.44 – 50 inches
226 – 400 sq. ft.50 – 54 inches
Over 400 sq. ft.54+ inches or multiple fans

Ceiling Height

The height of your ceiling is also very important.

It affects both safety and performance.

  • Standard Ceilings (8-9 feet): For ceilings of this height, the fan will usually come with a short downrod that is the correct length.

  • Low Ceilings (under 8 feet): You must use a “hugger” or low-profile fan that mounts directly to the ceiling. For safety, fan blades should always be at least 7 feet from the floor.

  • High Ceilings (over 9 feet): You will need a longer downrod to hang the fan at the optimal height for air circulation, which is about 8-9 feet from the floor. A longer downrod brings the fan closer to the living space where it can be felt.

Airflow (CFM)

Another important factor is the fan’s airflow, which is measured in Cubic Feet per Minute (CFM).

This number tells you how much air the fan moves.

A higher CFM rating means more powerful airflow.

Look for the CFM rating when you are comparing fans.

A fan with a higher CFM will be more effective at making you feel cool.

The fan’s motor power and blade pitch (the angle of the blades) are what determine its CFM.

Conclusion

The ceiling fan has a rich history, from manual punkahs to smart, efficient devices.

It remains a simple, affordable, and effective tool for home comfort and energy savings.


Frequently Asked questions (FAQs)

1. Do ceiling fans actually cool a room?

No, they don’t lower the room’s temperature.

They create a wind-chill effect that helps sweat evaporate from your skin, which makes you feel cooler.

2. Is it cheaper to run a fan or an air conditioner?

It is much cheaper to run a ceiling fan.

A fan uses far less electricity than an AC unit, so it can significantly lower your energy bills.

3. What direction should a fan spin in the summer?

In the summer, your fan should spin counter-clockwise.

This pushes air straight down, creating a cooling breeze on you.

4. How high should a ceiling fan be from the floor?

For safety and best performance, the bottom of the fan blades should be at least 7 feet above the floor.

Use a downrod for high ceilings.

5. Can I leave a ceiling fan on all the time?

You can, but it wastes energy.

Fans cool people, not rooms.

You should turn the fan off when you leave the room to save electricity.

6. What does CFM mean for a ceiling fan?

CFM stands for Cubic Feet per Minute.

It’s a measure of how much air a fan can move.

A higher CFM rating means stronger airflow.

7. Do more blades on a fan mean more air?

Not necessarily.

The motor power and the pitch of the blades have a bigger impact on airflow (CFM) than the number of blades.

More blades can sometimes make a fan quieter.

8. Can a wobbly ceiling fan fall?

It’s extremely unlikely.

A fan is secured by strong hardware that prevents it from falling.

Wobbling is usually caused by unbalanced blades and should be fixed, but it won’t cause the fan to fall.
