Compact Industrial Stand Fan
A smaller diameter for workstation airflow and commercial product lines where space matters. Confirm the measured airflow and clearance for the selected model.
China Factory · Wholesale & OEM
Industrial Pedestal Fan Manufacturer
Source 20, 26 and 30-inch industrial pedestal fans for your distribution network, retail range or commercial project. SF Fan supports importers and private-label brands with component selection, bulk production and export packing.
- Two reference configuration grades
- OEM / ODM support
- Assembled / SKD / CKD
Since 2013Fan manufacturing and export support
1,000 pcsStandard industrial MOQ per model
20 / 26 / 30 inIndustrial pedestal fan range
One-Year WarrantyCoverage subject to order terms
Choose Your Range
20, 26 and 30-Inch Industrial Pedestal Fans
Start with the available space, required airflow and operating hours. Then choose the motor, blade, height and base that suit your market.
Mid-Size Commercial Pedestal Fan
Build a workshop or warehouse fan range around a 26-inch model, with the winding, guard, stand and packing specified for the order.
Large Industrial Pedestal Fan
Evaluate the larger blade diameter alongside power input, stability and airflow coverage. Size alone does not define performance.
Compare the Complete Build
Heavy-Duty Pedestal Fans and Economy Configurations
Select a specification that fits the application and sales channel. These reference grades make the component differences clear before you compare wholesale prices.
High-Quality / Heavy-Duty Reference
Copper winding, cast-aluminum blade, reinforced grille, adjustable-height stand and 7 kg cross base with rubber feet.

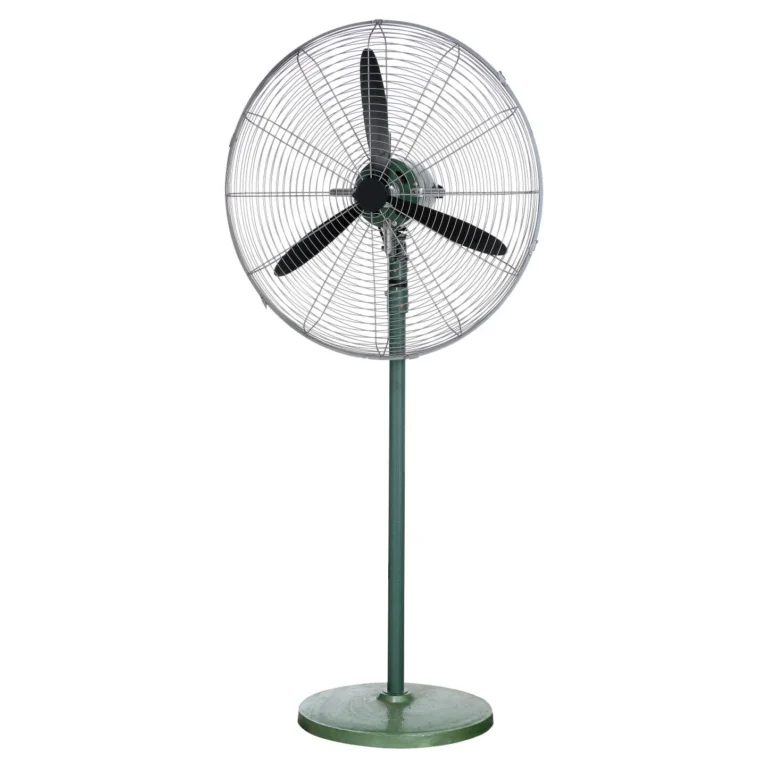

Economy Reference
Aluminum winding, plastic or aluminum blade, fixed-height stand and 3.5 kg round base for cost-focused wholesale programs.
High-Quality Grade — Full Reference Specifications
| Specification | 20-Inch | 26-Inch | 30-Inch |
|---|---|---|---|
| Motor size | 120 × 102 × 18 mm | 120 × 102 × 24 mm | 120 × 102 × 28 mm |
| Winding | Copper | Copper | Copper |
| Power | 110 W | 180 W | 200 W |
| Reference speed | 1300 RPM | 1300 RPM | 1300 RPM |
| Grille diameter | 560 mm | 710 mm | 810 mm |
| Grille wire / spacing | 1.8 mm / 8 mm | 1.8 mm / 8 mm | 1.8 mm / 8 mm |
| Blade | Cast aluminum | Cast aluminum | Cast aluminum |
| Stand | Adjustable height | Adjustable height | Adjustable height |
| Base | 7 kg cross base | 7 kg cross base | 7 kg cross base |
| Base feet | Rubber | Rubber | Rubber |
| Power supply options | 110 / 127 / 220–240 V, 50 / 60 Hz | 110 / 127 / 220–240 V, 50 / 60 Hz | 110 / 127 / 220–240 V, 50 / 60 Hz |
| Bearing | Ball bearing | Ball bearing | Ball bearing |
Economy Grade — Full Reference Specifications
| Specification | 20-Inch | 26-Inch | 30-Inch |
|---|---|---|---|
| Motor size | 120 × 98 × 12 mm | 120 × 98 × 14 mm | 120 × 98 × 14 mm |
| Winding | Aluminum | Aluminum | Aluminum |
| Power | 100 W | 125 W | 150 W |
| Reference speed | 1300 RPM | 1300 RPM | 1300 RPM |
| Grille diameter | 560 mm | 688 mm | 788 mm |
| Grille wire / spacing | 1.3–1.4 mm / 14–16 mm | 1.3–1.4 mm / 14–16 mm | 1.3–1.4 mm / 14–16 mm |
| Blade | Plastic or aluminum | Plastic or aluminum | Plastic or aluminum |
| Stand | Fixed height | Fixed height | Fixed height |
| Base | 3.5 kg round base | 3.5 kg round base | 3.5 kg round base |
| Power supply options | 110 / 127 / 220–240 V, 50 / 60 Hz | 110 / 127 / 220–240 V, 50 / 60 Hz | 110 / 127 / 220–240 V, 50 / 60 Hz |
| Bearing | Ball bearing | Ball bearing | Ball bearing |
Reference configurations only. Final combinations, rated values and tolerances follow the approved model specification. Other blade materials, including magnesium, are reviewed separately rather than assumed for these reference grades.
Specify the Parts That Matter
Industrial Stand Fan Motors, Blades and Bases
A useful factory quotation identifies the complete build. We review the electric motor, fan blade, safety grille, pole, base and electrical setup together before the sample is approved.

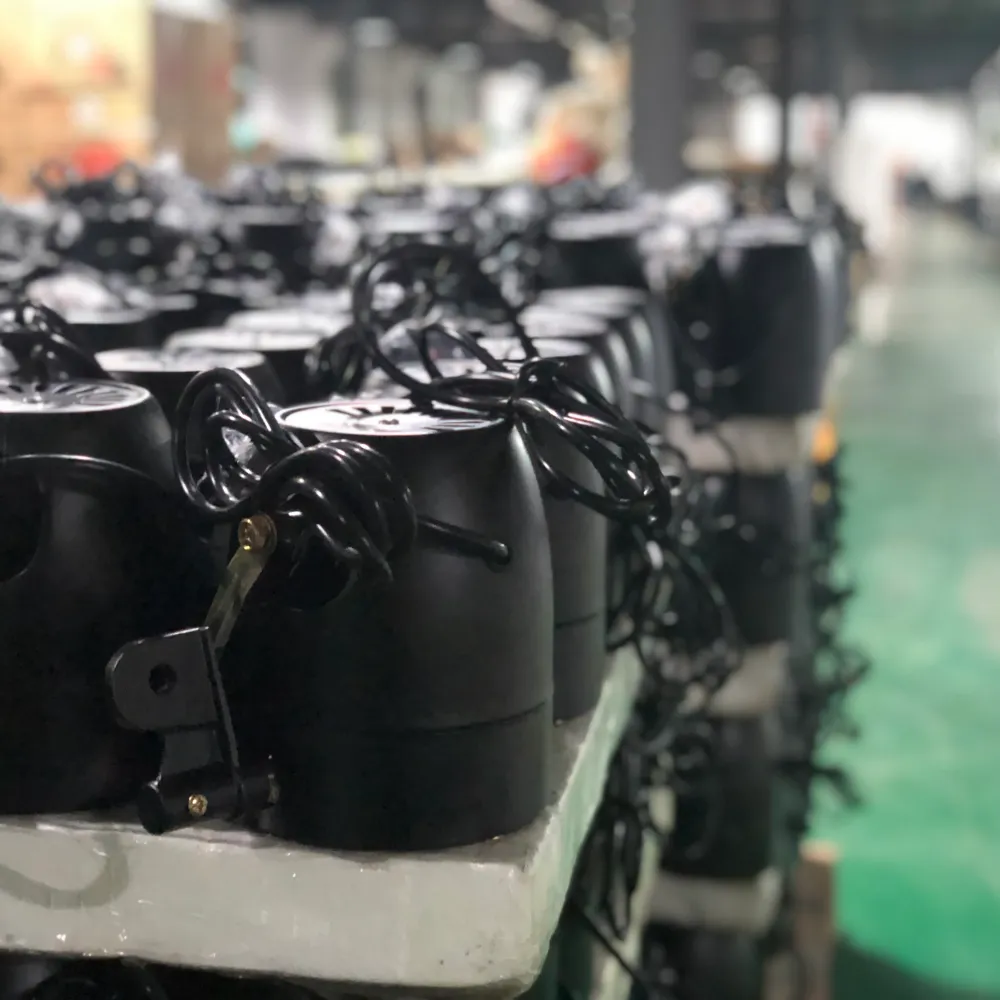

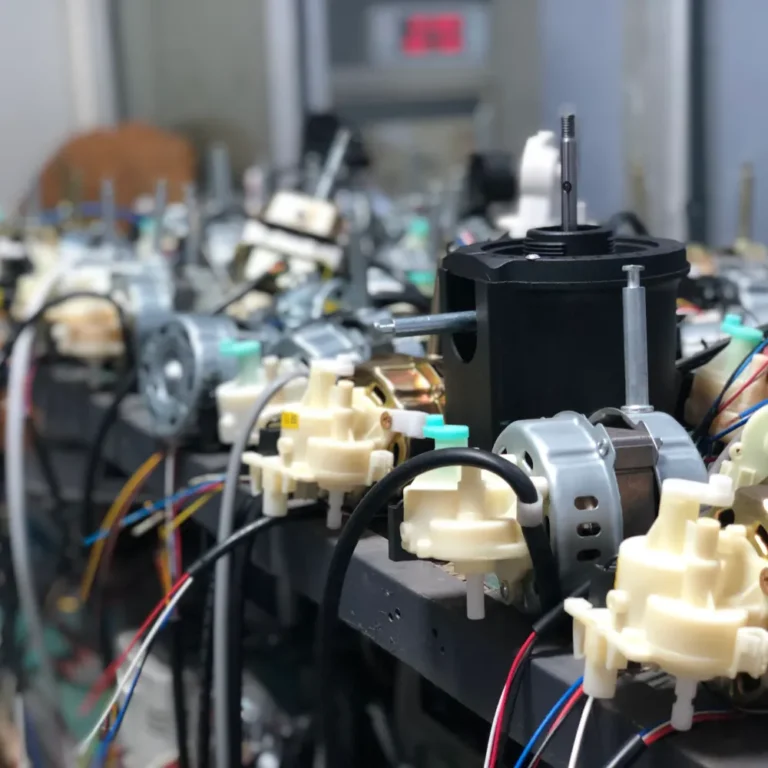

Motor & Bearings
Select copper or aluminum winding, motor size and bearing configuration. Review the capacitor, thermal protection and enclosure requirements for the selected model.
Balanced Fan Blade
Cast-aluminum, aluminum, magnesium or plastic blade options are matched to the fan size, motor and target airflow. Material and balancing requirements form part of the approved specification.
Grille & Surface Finish
Confirm guard diameter, wire thickness, grille spacing and outer-ring construction. Powder coating and corrosion-resistance requirements are reviewed by configuration.
Height & Oscillation
Specify an adjustable or fixed-height pole, tilt arrangement and oscillation mechanism. Confirm available models, sweep angle and gearbox construction before sampling.
Base & Stability
Choose the cross-base or round-base structure and confirm base weight, rubber feet and fasteners. A wheeled or caster base requires a separate reviewed configuration.
Controls, Cord & Plug
Match voltage, frequency, speed settings, power cord, plug and rating label to the destination market. Phase and motor protection depend on the model.
Compare Performance, Not Labels
High-Velocity Pedestal Fan Airflow and Oscillation
For high-velocity pedestal fan sourcing, ask for the measurements that matter to your application. Available test data is reviewed for the selected configuration.
Airflow: CFM / m³/h
Request measured air volume for the same model, supply voltage and speed. RPM alone cannot establish airflow.
Power, Current & RPM
Compare rated watts, amps and motor speed together. Use declared motor horsepower only where it is part of the specification.
Oscillation & Air Throw
Confirm oscillating or non-oscillating operation, sweep angle, tilt and usable airflow at the working distance.
Noise Level: dB(A)
Keep the measurement distance, fan speed and environment with each reading before making a noise comparison.
Speed & Working Hours
Confirm speed settings and the intended daily operating hours so the motor and controls match the application.
Maintenance & Running Cost
Consider access for cleaning, component replacement and spare parts alongside electricity use and the purchase price.
Industrial pedestal fans circulate air; they are not air conditioners. Estimate electricity use with the fan running-cost calculator using the rated wattage of your model.
Airflow Around Working Areas
Industrial Pedestal Fans for Warehouses and Workshops
Elevated, freestanding airflow can support worker comfort without a permanent wall installation. Tell us where the fan will stand, who it needs to reach and how long it will run.
Factories & Workshops
Direct airflow towards assembly stations, workshop benches and occupied production areas. Review working hours, dust and heat conditions.
Warehouses & Loading Areas
Position circulation around packing stations and loading docks while maintaining safe aisle and cable clearance.
Garages & Service Bays
Use freestanding airflow where work locations change. Keep the base stable and the fan clear of traffic routes.
Gyms & Commercial Spaces
Compare coverage and operating sound for shared indoor areas. Review height, speed settings and placement before choosing a model.
Need a Different Fan Structure?
For low-position spot cooling, compare an industrial floor fan. Choose an industrial wall fan to save floor space, an industrial drum fan for a drum-format airflow solution, or an industrial mist fan for suitable water-assisted applications. Standard pedestal models are not automatically outdoor-rated.
View the complete industrial fan range for broader product selection.
Your Range, Your Specification
OEM & Private Label Industrial Pedestal Fans
Build a custom industrial stand fan range around your buyers and sales channel. We connect the product specification with branding, market requirements and packing before bulk production.
From Sample to Shipment
Industrial Pedestal Fan Quality Control
Define the inspection plan around the model and destination market. Keep the approved components, test conditions and packing reference with the order.
01 / ASSEMBLY
Approved Components
Check motor, electrical parts, blade, grille, stand and base against the signed specification and sample.
02 / TESTING
Electrical & Functional Checks
Agree on applicable hi-pot, temperature-rise, low-voltage start, speed, oscillation, vibration, noise and stability checks.
03 / FINAL INSPECTION
Product & Packing Review
Review appearance, labels, manuals, accessories, carton quantity and the export packing arrangement before shipment.
Model-Specific Compliance Documents
CE, CB, RoHS and ErP options depend on the selected model and target market. Send any UL / ETL listing, OSHA-related guard or other market requirement for review before ordering; these are not blanket certifications for the range. Explore our fan production process for more manufacturing context.
Plan Your Landed Cost
Assembled, SKD and CKD Pedestal Fan Packing
Choose the delivery format around your receiving process, assembly capability and distribution model. We confirm carton dimensions, CBM, gross / net weight and loading quantity after the components are approved.
- Assembled / CBU: complete-set packing for simpler receiving.
- SKD: separated major assemblies with protection for motors, blades, guards, rods and bases.
- CKD: a component packing plan matched to the buyer’s local assembly and QC capability.
- Custom cartons, shipping marks, instructions and spare-parts packing reviewed with the order.
A current 26-inch SKD reference loads approximately 1,050 pieces in a 40HQ. This is a planning reference, not a guarantee for every configuration; final loading depends on the approved cartons and component split.
Factory-Direct B2B Supply
Source Industrial Pedestal Fans from SF Fan
Since 2013, SF Fan has supported fan sourcing from China for importers, distributors and private-label brands. Learn about our factory and discuss a wholesale program built around a defined specification.
Define Your Order
Send size, quantity, destination, voltage, application and packing preference.
Approve the Build
Review the specification, sample, logo, labels and packaging artwork.
Produce & Inspect
Agree on the production schedule, inspection plan and acceptance criteria.
Prepare Shipment
Confirm packing data, spare parts, documents and the repeat-order reference.
Questions Before You Order
Industrial Pedestal Fan Wholesale & OEM FAQs
Find the main product and purchasing answers below. For broader supply questions, visit the SF Fan FAQ.
What is the MOQ for wholesale industrial pedestal fans?
The standard MOQ is 1,000 pieces per model. Custom motors, components, colors, logos or packaging can affect the final minimum quantity.
Which sizes can SF Fan supply?
The industrial pedestal fan range covers 20, 26 and 30 inches. Select the size together with the motor, airflow target, stand, base and packing plan.
How do the high-quality and economy grades differ?
The high-quality reference uses copper winding, a cast-aluminum blade, reinforced grille, adjustable stand and 7 kg cross base. The economy reference uses aluminum winding, a plastic or aluminum blade, fixed stand and 3.5 kg round base. The approved specification defines the final build.
Which fan blade materials are available?
Cast-aluminum, aluminum, magnesium and plastic blade options can be reviewed for the selected model. Blade material is matched to the motor, size, balancing requirements and target airflow; it is not automatically interchangeable across every configuration.
Can I order an oscillating or adjustable-height industrial pedestal fan?
Adjustable-height stands are part of the high-quality reference configuration, while the economy reference uses a fixed stand. Confirm oscillating or non-oscillating model availability, sweep angle and tilt requirements before sampling.
What should I compare besides fan diameter?
Compare measured CFM or m³/h, rated power, current, RPM, speed settings, noise, stability and air coverage. Keep the voltage, speed, test distance and other measurement conditions with the results.
Can you customize voltage, plugs, logos and cartons?
Yes, subject to the selected model and order quantity. OEM / ODM review can cover electrical setup, components, colors, private-label branding, rating labels, instructions and export packaging.
Do you supply assembled, SKD or CKD packing?
Yes. The packing plan is reviewed against the fan structure, destination and local assembly capability. Final carton dimensions, CBM, weights and container quantity are confirmed for the approved configuration.
What are the sample, delivery and warranty terms?
Typical samples take 7–14 days. First bulk orders usually take 30–45 days and repeats 20–25 days, subject to confirmation. Standard warranty is one year; spare-parts allocation and service terms follow the order agreement.
How is an industrial pedestal fan different from a household standing fan?
Industrial pedestal fans are specified around working conditions, motor construction, airflow, guards, stand and base. Household standing fans serve a different product range. Choose the model and approved specification rather than relying on appearance alone.
Looking for residential models instead? Explore our household pedestal fans.
Let’s Build Your Pedestal Fan Order
Tell us your preferred size, quantity, market and configuration. We will review the model, OEM options and packing plan for a comparable factory quotation.
