Heavy-Duty Wall Fan Configuration
Compare the copper-winding motor, cast-aluminum blade and reinforced grille reference when stronger component specifications are your priority. Confirm the complete bill of materials for the selected model.
Factory Direct · Wholesale & OEM
Industrial Wall Fan Manufacturer in China
Source 20-inch, 26-inch and 30-inch industrial wall fans for your distribution network, private-label range or commercial project. SF Fan matches the motor, blade, grille, oscillation system and wall bracket to your market, operating conditions and buying target.
- High-quality & economy configurations
- OEM / ODM & custom branding
- Assembled, SKD & CKD supply
20 / 26 / 30 INCH Since 2013Fan manufacturing & export support
1,000 PCSStandard MOQ per model
OEM / ODMConfiguration, branding & packing
1 YearStandard warranty, agreed terms apply
Choose Your Configuration

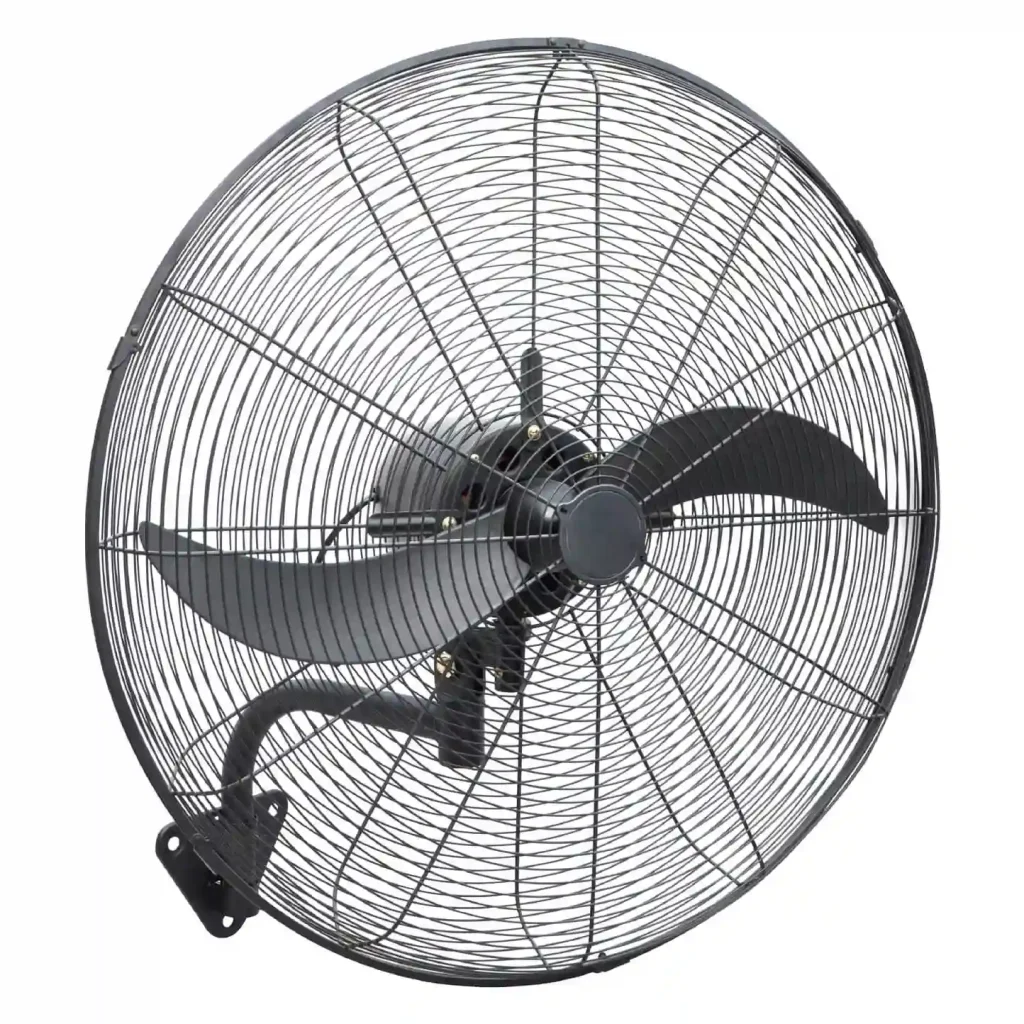

20, 26 and 30-Inch Industrial Wall Fans
Start with the fan size, then define the component grade and airflow coverage. A larger diameter alone does not establish airflow, service life or suitability for the installation.
Economy Wholesale Wall Fan
An aluminum-winding motor and plastic or aluminum blade can support a cost-focused product line. Compare the approved motor, grille, bracket, packing and warranty terms rather than unit price alone.
Oscillating Industrial Wall Fan
Distribute airflow across occupied work areas without a floor-standing base. Confirm sweep angle, fixed-direction availability, tilt adjustment and controls for the exact fan configuration.
OEM & Private-Label Wall Fan
Build your own branded range with agreed colors, center badge, rating label, voltage, plug and carton artwork. New structures and development requirements are evaluated before sampling.
20-inch: evaluate for individual work zones. 26-inch: compare for broader workplace coverage. 30-inch: evaluate where the airflow plan and wall structure accommodate a larger fan. Final selection depends on measured performance and the site.
Specification Before Price
Industrial Wall Fan Motors, Blades and Mounting Specifications
A wall-mounted industrial fan is a matched assembly. Motor winding, blade geometry, guard clearance, oscillation and bracket structure should be confirmed together before comparing quotations.

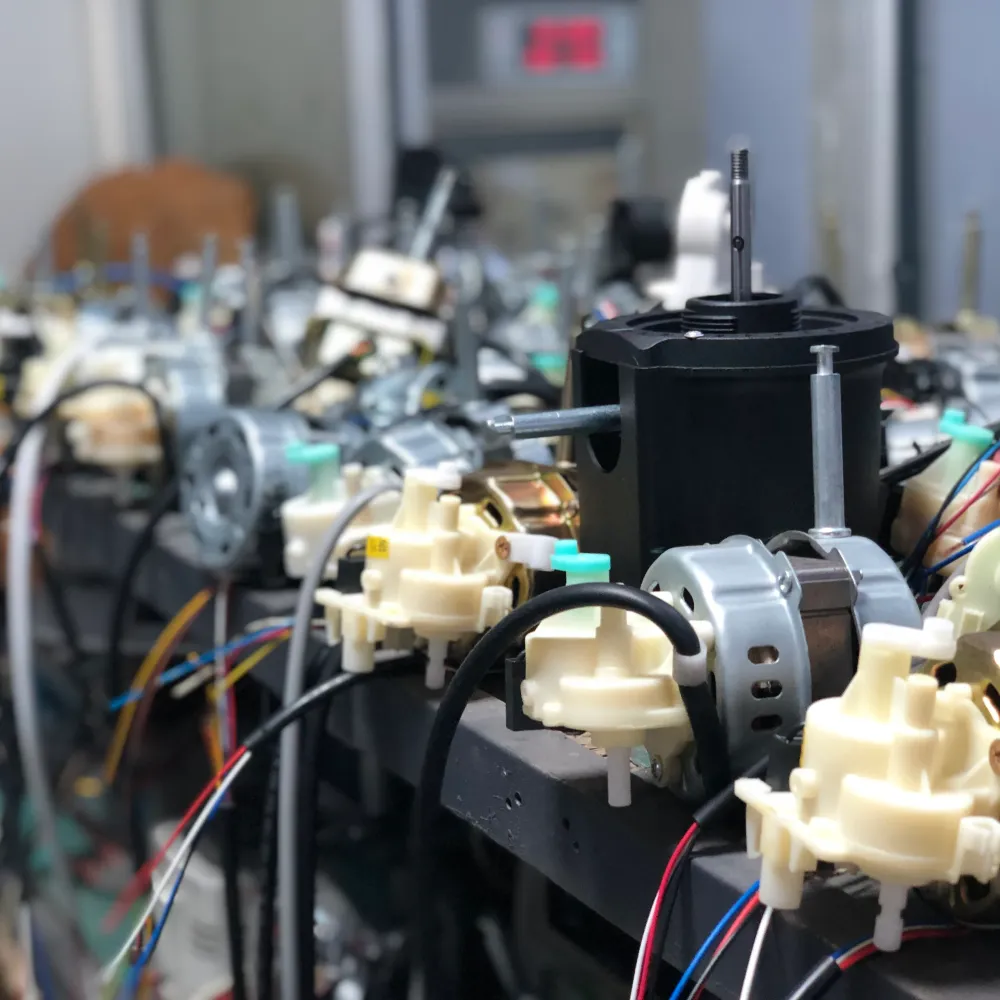

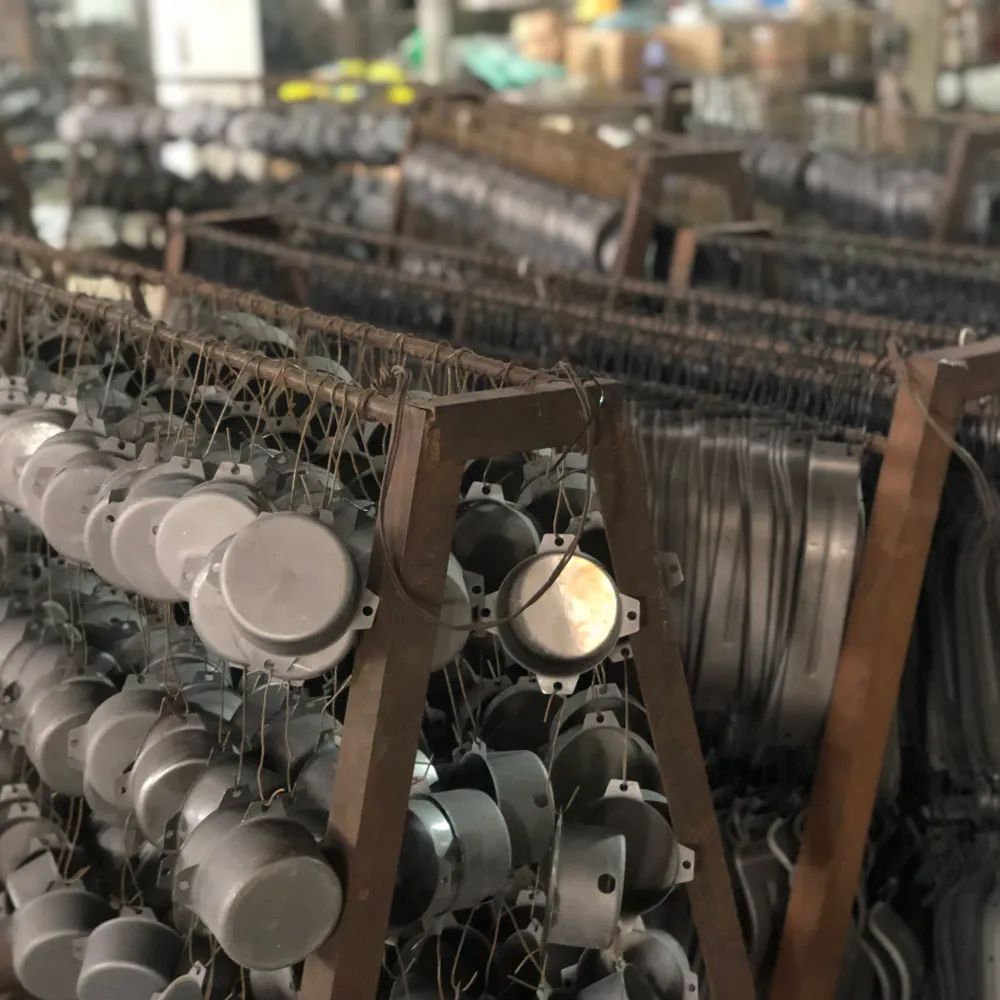

Motor & Bearing
Specify copper or aluminum winding, motor dimensions, capacitor and ball-bearing configuration. Confirm motor enclosure and thermal protection where required.

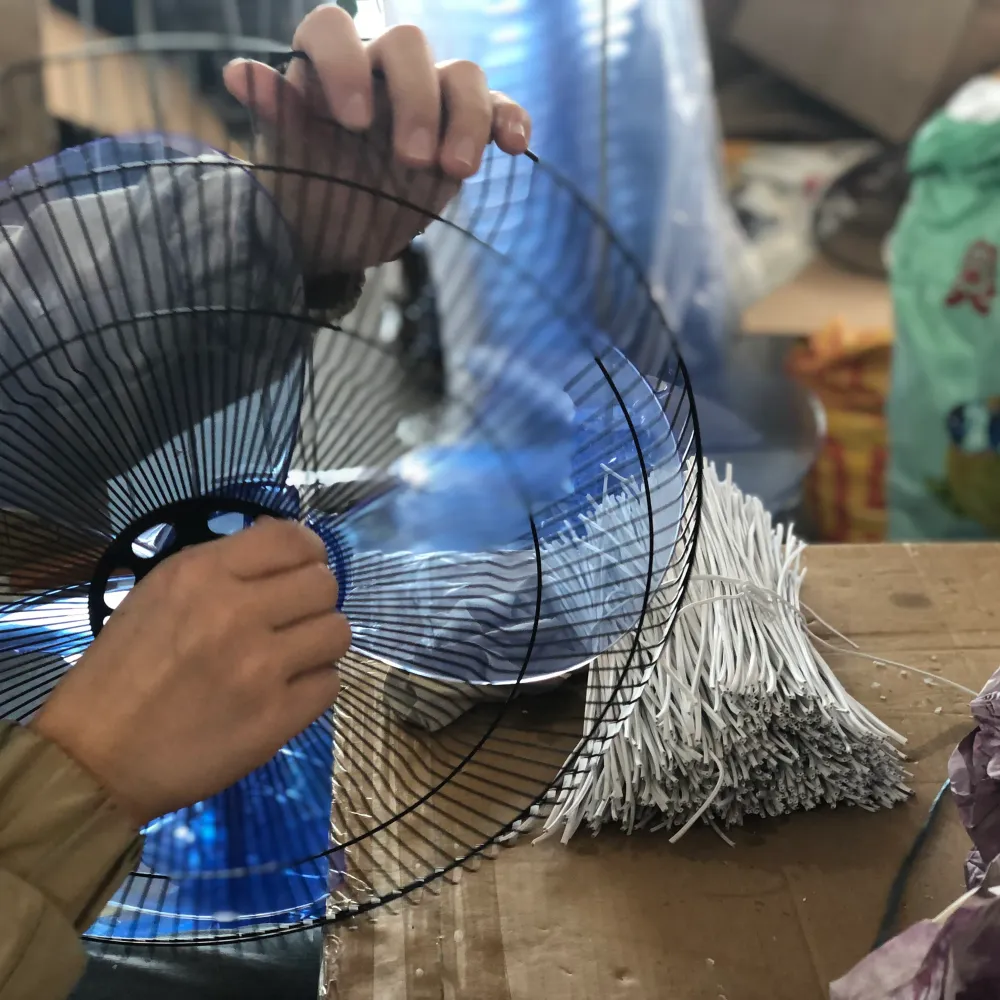

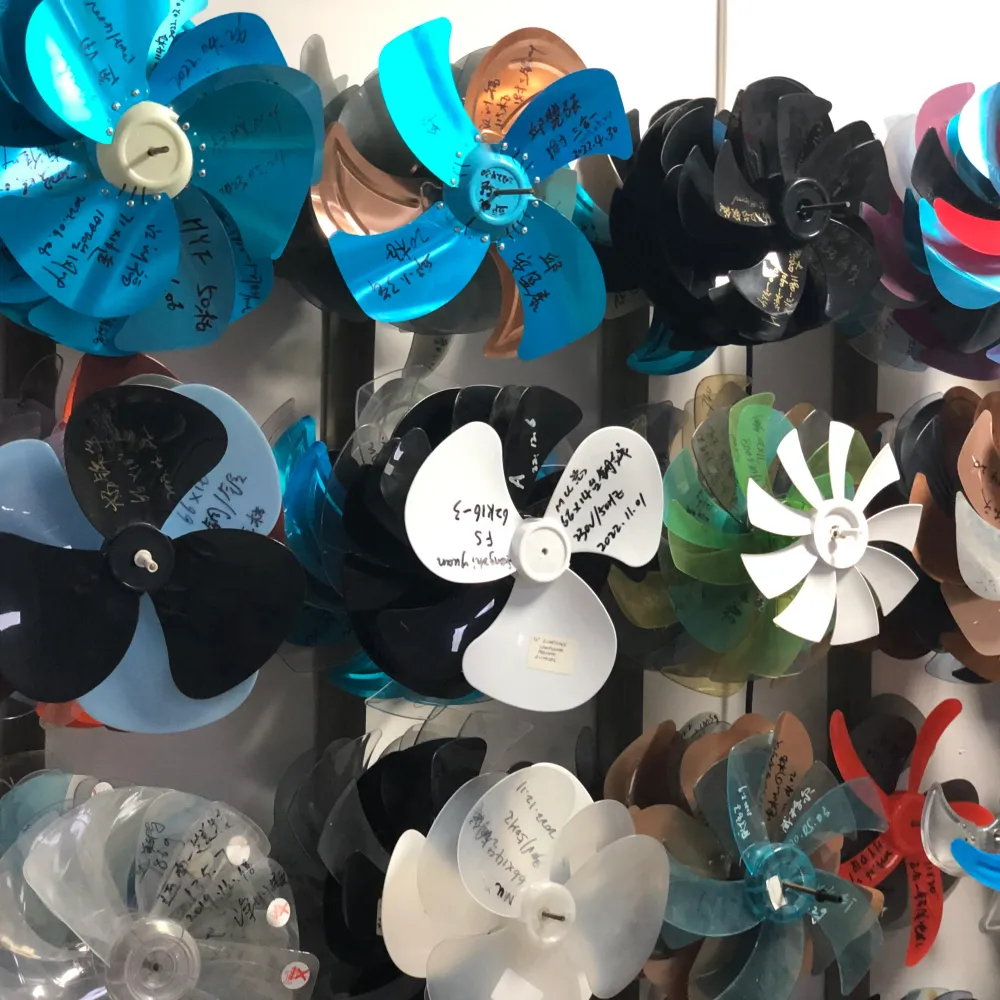

Blade & Grille
Define blade material, diameter and balance, plus grille diameter, wire thickness, spacing and finish. Component options must be compatible with the selected motor.
Oscillation & Tilt
Confirm gearbox construction, sweep angle, tilt range, tilt holding and speed controls. Do not assume every size has identical adjustment or control options.

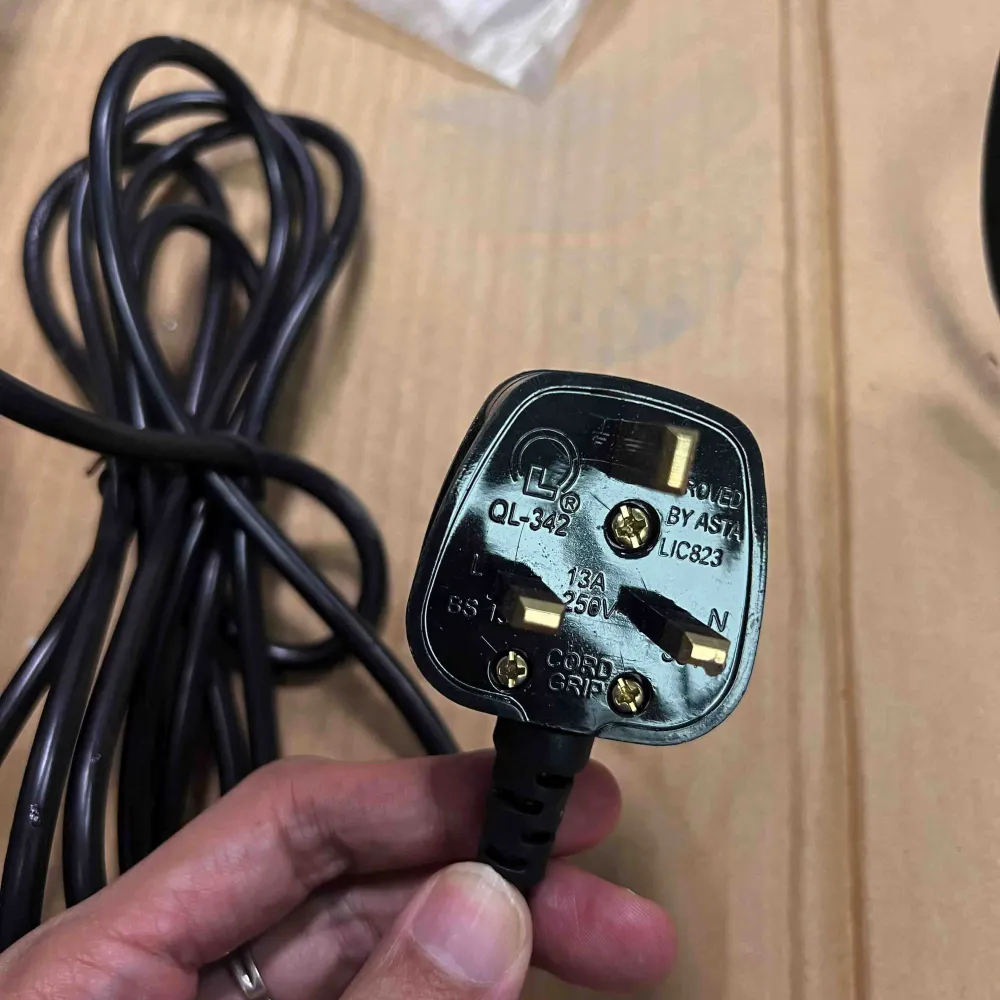

Bracket & Electrical Setup
Match the wall bracket to fan weight and structure. Agree on voltage, frequency, plug, cord, speed settings and rating label for the destination market.
Reference Configurations by Size
These existing reference specifications help start a sourcing discussion. Final components, tolerances, power and supply combinations follow the approved model specification.
| High-Quality Reference | 20-Inch | 26-Inch | 30-Inch |
|---|---|---|---|
| Motor dimensions | 120 × 102 × 18 mm | 120 × 102 × 24 mm | 120 × 102 × 28 mm |
| Winding / bearing | Copper / ball bearing | Copper / ball bearing | Copper / ball bearing |
| Power reference | 110 W | 180 W | 200 W |
| Speed reference | 1300 RPM | 1300 RPM | 1300 RPM |
| Grille diameter | 560 mm | 710 mm | 810 mm |
| Grille wire / spacing | 1.8 mm / 8 mm | 1.8 mm / 8 mm | 1.8 mm / 8 mm |
| Blade reference | Cast aluminum | Cast aluminum | Cast aluminum |
| Economy Reference | 20-Inch | 26-Inch | 30-Inch |
|---|---|---|---|
| Motor dimensions | 120 × 98 × 12 mm | 120 × 98 × 14 mm | 120 × 98 × 14 mm |
| Winding / bearing | Aluminum / ball bearing | Aluminum / ball bearing | Aluminum / ball bearing |
| Power reference | 100 W | 125 W | 150 W |
| Speed reference | 1300 RPM | 1300 RPM | 1300 RPM |
| Grille diameter | 560 mm | 688 mm | 788 mm |
| Grille wire / spacing | 1.3–1.4 mm / 14–16 mm | 1.3–1.4 mm / 14–16 mm | 1.3–1.4 mm / 14–16 mm |
| Blade options | Plastic or aluminum | Plastic or aluminum | Plastic or aluminum |
Both reference families use wall mounting. Available electrical configurations include 110 / 127 / 220–240 V and 50 / 60 Hz, subject to the selected model. RPM and wattage do not establish airflow.
Compare Airflow, Not Just Fan Diameter
For a high-velocity wall mount fan, request airflow in CFM or m³/h, air velocity at the required distance, watts, current, RPM and noise readings at each available speed. Use consistent test conditions, especially for noise and air throw.
Estimate electricity use with our fan running-cost calculator using the rated power of your chosen model.
Confirm the Wall Before Installation
Provide mounting height, wall material, available clearance and required coverage. A qualified local installer must verify the supporting wall, anchor type, load capacity, fixing method and safe clearance. Secondary safety cables and special mounting hardware require separate confirmation.
Standard wall models are not assumed suitable for ceiling, pole or corner mounting.
Plan Your Bulk Order
Wholesale Industrial Wall Fans Direct from the Factory
For importers, distributors and brand owners, a useful wholesale price includes a defined configuration. We review your product brief, quantity and packing plan before preparing a quotation.
What to Send for an Accurate Quote
- 20, 26 or 30-inch size and reference model or photo
- Motor winding, component grade and target specification
- Quantity per model and destination market
- Voltage, frequency, plug and required documents
- Logo, colors, carton artwork and supply format
The standard MOQ is 1,000 pieces per model. Custom components, colors and packaging may affect the final minimum quantity.
| Supply Format | Planning Focus |
|---|---|
| Assembled / CBU | Confirm what is assembled on arrival, protection of the fan head and bracket, and carton dimensions. |

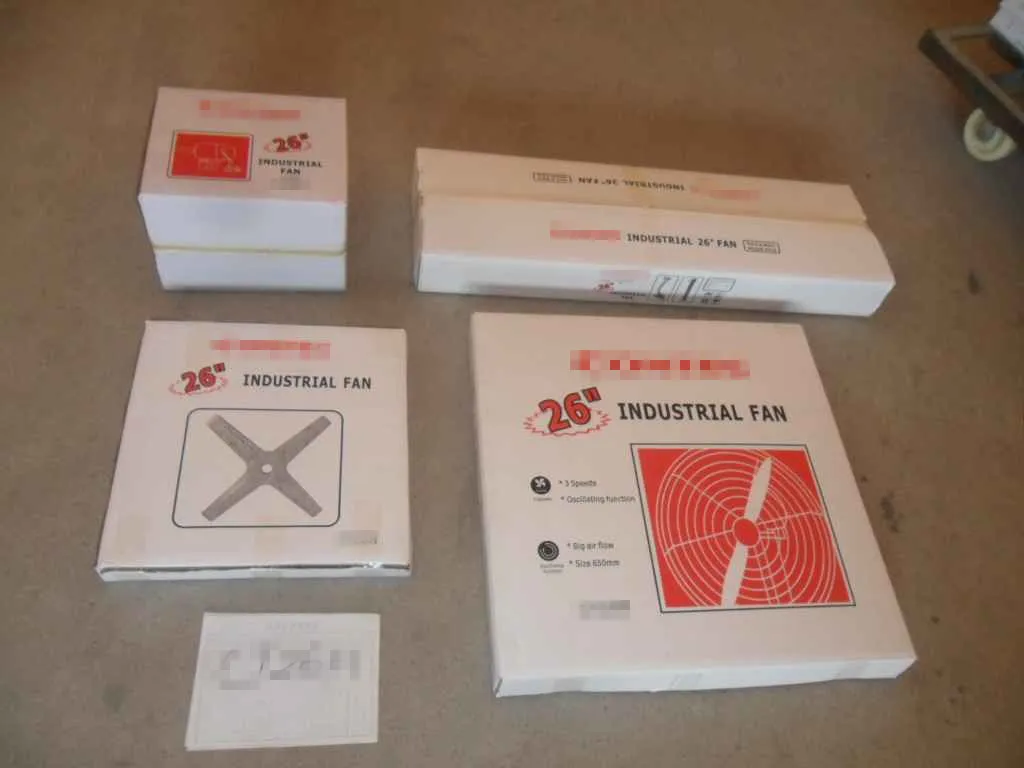

| SKD | Agree on motor-head assemblies, grille and blade sets, wall brackets, fasteners and final assembly instructions. |
| CKD | Confirm the parts list, local assembly capability, test process, component grouping and packing protection. |
| Container planning | Calculate carton CBM, net / gross weight and loading quantity from the approved wall fan packing plan. |
Explore SKD / CKD fan solutions and fan packaging and container loading. Loading figures for pedestal fans are not used as wall fan loading figures; final quantities depend on this model's cartons.
Your Brand, Agreed Specifications
OEM & Private-Label Industrial Wall Fan Manufacturing
Start with an existing wall fan structure or discuss a custom configuration for your sales channel. The development scope, sample, tooling requirements and commercial terms are confirmed before mass production.
See our OEM / ODM electric fan services for the wider development and private-label process.
START A CUSTOM WALL FAN PROJECTFrom Sample to Shipment

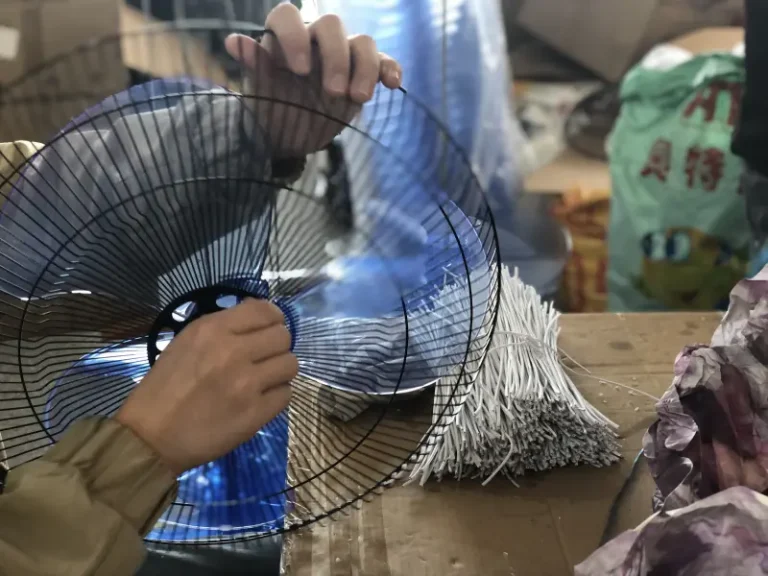

Inside Our Industrial Wall Fan Production Process
Production starts from an agreed component list and approved sample. Confirm the wall fan's motor, blade, grille, bracket, electrical setup and packaging before materials are committed.
01 / Parts
Confirm & Prepare Components
Check incoming components against the approved specification, including motor, blade, guards, oscillation parts and wall bracket.
02 / Assembly
Assemble the Matched Structure
Assemble the motor head, oscillation mechanism, blade and grille. Check connections, bracket fit and fastening before final testing.
03 / Release
Test, Pack & Check the Order
Complete the agreed inspection plan, confirm accessories and carton markings, and verify packing quantities before shipment.
Follow the wider electric fan production process and incoming quality control. The approved sample and component list remain the reference for repeat orders.
Model-Specific Inspection
Industrial Wall Fan Quality Control Before Shipment
Agree on the inspection items, test conditions and acceptance criteria for the selected model and market. A general heavy-duty description does not replace electrical, mechanical or performance verification.
Electrical & Starting
Check wiring, rated input, starting and running behavior. Dielectric strength, insulation and other safety tests follow the applicable model requirements.
Oscillation & Fastening
Check the sweep mechanism, tilt holding, bracket connections, screws, guard fit and blade clearance against the agreed structure.
Noise & Vibration
Evaluate abnormal sound, vibration and blade balance. Temperature-rise and extended-running checks follow the agreed test plan.
Appearance & Packing
Check finish, labels, accessories, instructions, carton artwork and shipping marks. Confirm product and component counts for the supply format.
Certification Is Confirmed by Model and Destination
CE, CB, ErP and RoHS options are evaluated for relevant configurations. Ask which documents apply to the exact model you plan to import. UL / ETL listing, wet-location suitability, waterproofing and special environmental requirements are not assumed for the standard range.
Read about fan testing and quality control and confirm the required compliance documents before production.
A Clear Basis for Repeat Orders
Why Importers Source Industrial Wall Fans from SF Fan
We help you connect the buying brief with a defined product, packing plan and after-sales arrangement. That makes future comparisons and repeat orders easier to manage.
Installation Information First
Mounting height, wall condition, working hours and coverage help define the model. This is more useful than selecting only by fan diameter or the lowest quoted price.
A Defined Bill of Materials
Record motor winding, blade, grille, gearbox, bracket and electrical setup so you know what is included in the approved configuration.
Brand & Shipment Coordination
Plan colors, labels, carton artwork, supply format and loading data before production. Keep approved samples and specifications as repeat-order references.
Warranty & Spare-Parts Support
The standard warranty is one year. We generally provide 0.5% spare parts and troubleshooting guidance. Coverage, remedies and any replacement motor arrangement follow the agreed order terms.
Learn more about SF Fan and Mike Chung's export experience. For a wholesale program, send your target market and preferred model so we can start with the right questions.
Elevated Airflow, Clear Floor Space

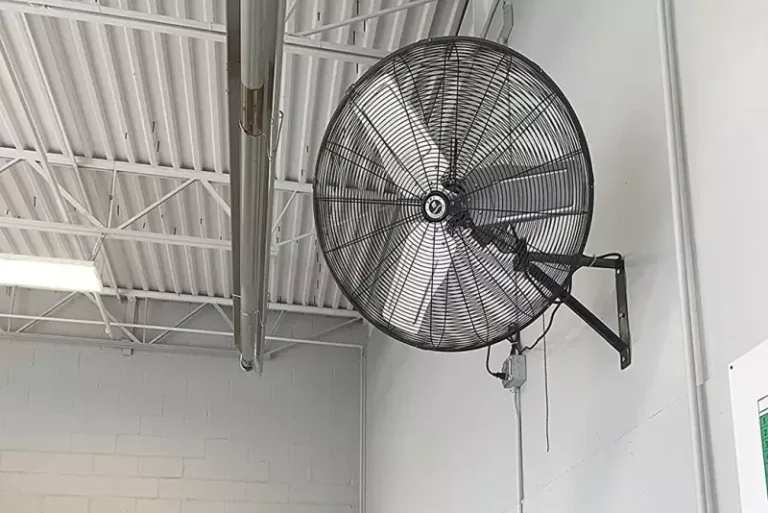

Industrial Wall Fans for Workshops, Warehouses and Commercial Spaces
Wall-mounted circulation keeps fan bases off the floor. Match airflow direction, mounting height, working hours and coverage to occupied zones rather than relying on a universal coverage-area claim.
Factories & Workshops
Direct airflow toward production lines, workbenches and assembly stations while maintaining floor access. Check dust, heat and other site conditions before selection.
Warehouses & Packing Areas
Position wall fans around occupied packing and storage zones. Confirm rack clearance, cable routing and access for cleaning and maintenance.
Garages & Service Bays
Keep circulation equipment clear of work routes. Standard models are not explosion-proof equipment and are not a substitute for fume extraction.
Gyms & Commercial Facilities
Compare noise, air movement and mounting arrangements for busy indoor venues. Commercial wall fan selection should reflect actual duty and customer expectations.
Choose the Fan Format Around the Job
| Your Requirement | Relevant Product | Difference to Check |
|---|---|---|
| Move the fan between work zones | Industrial pedestal fans | Floor space, base stability and elevated airflow. |
| Portable, low-level spot cooling | Industrial floor fans | Frame, tilt, working height and placement. |
| Exchange indoor and outdoor air | Industrial exhaust fans | Through-wall extraction is different from room-air circulation. |
| Lighter-duty home and retail range | Household wall-mounted fans | Household sizes, controls and retail positioning. |
| Water-assisted cooling project | Industrial mist fans | Water supply, environment and electrical suitability require review. |
Review the complete industrial fan range for other formats. Standard indoor wall fans are not automatically outdoor-rated or waterproof.
Questions Before Ordering
Industrial Wall Fan Wholesale & OEM FAQ
Practical answers for importers, distributors, brand owners and project buyers. See the SF Fan FAQ for wider order and supply questions.
Which industrial wall fan sizes do you offer?
The core industrial wall range covers 20, 26 and 30 inches. We confirm the complete configuration by model. Blade diameter, grille diameter, motor, bracket and packing dimensions should be checked separately.
What is the MOQ for a wholesale order?
The standard MOQ is 1,000 pieces per model. Custom motors, colors, components and packaging may change the minimum quantity. Send your size, target specification, market and estimated quantity for confirmation.
What changes between the high-quality and economy references?
The high-quality reference uses copper winding, cast-aluminum blades and a reinforced grille. The economy reference uses aluminum winding with plastic or aluminum blade options and a lighter grille specification. Final components follow the approved model, not appearance alone.
Are oscillation, tilt and remote controls standard?
Oscillation and tilt arrangements are confirmed by model, including sweep angle, fixed-direction availability and controls. Remote control is not assumed to be standard on the industrial range. Ask us to evaluate the exact control requirement before sampling.
What wall and fixing information do you need?
Share wall material, proposed mounting height, fan position and required clearance. A qualified local installer must verify the supporting structure, anchors, load and fixing method. Bracket hardware, wall anchors and secondary safety cables must be listed separately in the agreed scope.
Can these fans be installed outdoors or used for exhaust?
Standard industrial wall fans are room-air circulation products. Outdoor, wet-location or corrosive environments need a separately confirmed suitable model. For through-wall air exchange, consider an industrial exhaust fan instead.
Can you customize voltage, plugs, branding and cartons?
Yes, subject to model compatibility, quantity and project review. We evaluate voltage, frequency, plug, power cord, motor, blade, grille, bracket, colors, logo, rating labels, instructions and carton artwork. Compliance documents are checked for the exact destination and configuration.
Do you supply SKD or CKD wall fan kits?
Yes. We evaluate assembled, SKD and CKD supply around the fan structure and your assembly capability. Confirm the parts list, assembly instructions, spare parts, carton dimensions, weight and container quantity before production.
What are the sample, delivery and after-sales terms?
Typical samples take 7–14 days. First bulk orders generally take 30–45 days and repeat orders 20–25 days, subject to model, approvals and production scheduling. The standard warranty is one year; we generally provide 0.5% spare parts and troubleshooting guidance under the agreed order terms.
Ready to Source Industrial Wall Fans?
Send the size, quantity, destination market, voltage, frequency and packing preference. For project sourcing, add room dimensions, mounting height, working hours and airflow coverage so we can review the right configuration.
