Compact Pedestal Fans
Space-saving models for compact rooms, counters and price-sensitive retail programs, with selected color options including purple, green and grey.
China Pedestal Fan Manufacturer
Pedestal Fan Manufacturer for Wholesale & OEM
OEM 10-inch, 12-inch, 16-inch and 18-inch household pedestal fans for importers, distributors, appliance brands and retailers. Configure the motor, blade, grille, controls, base, voltage, color, logo and export packing for your market.
- Standard and feature-rich configurations
- OEM / ODM and SKD / CKD support
- One-year warranty
20+ YearsFan manufacturing experience
1,000 PCSStandard MOQ per model
10–18 inHousehold pedestal fan range
CE / CBCertification options by model
Household Pedestal Fan Range
Build the Right Size Mix for Your Market
Choose by room size, retail price point, local consumer preference and container plan. Available designs and component combinations are confirmed model by model.
Small-Room Stand Fans
Portable household airflow with adjustable-height and control options depending on the selected model and target specification.
Core Wholesale Size
A widely used household size with multiple blade, grille, control, base and branding choices for distributors and retail brands.
Wider Household Airflow
A larger household option for living spaces, offices and markets that prefer stronger air coverage without moving to an industrial fan.
Important: Size alone does not determine performance or price. The motor, blade, grille, base, controls, voltage and packing must be compared together.
Pedestal Fan Specification Guide
Choose the Right Pedestal Fan Components for Your Market
SF Fan offers a flexible household pedestal fan component library for wholesale and OEM projects. The options below are not fixed by fan size. We confirm the suitable motor, grille, blade, pedestal structure and base cover after your performance target, target price and market requirements are clear.
Motor Aluminum or Copper Winding 66, 71 and 74 motor-core options are available.
Airflow Parts Grille & AS Blade Options 340 / 430 / 500 mm grille references and 12 / 16 / 18 inch blade options.
Pedestal Structure Tube & Base Options Adjustable pedestal tube assemblies and 1.4–3.0 kg base weights.
Base Cover 370 / 400 / 430 mm Cover options fitted above the base to complete the product appearance.
01
Motor Core & Winding Options
Choose aluminum or copper winding according to the selected specification. The motor-core references below are available options, while final power, speed, winding and performance are confirmed for each approved model.
Aluminum Winding Motors
Available for projects where the target cost and required performance need to be balanced in the final product specification.
- 66 × 10
- 66 × 12
- 66 × 14
- 66 × 16
- 71 × 16
- 71 × 18
- 71 × 20
- 74 × 20
Copper Winding Motors
Available when the approved fan program calls for copper winding. The selected motor is reviewed together with the blade load, rated power and target market.
- 66 × 10
- 66 × 12
- 66 × 14
- 66 × 16
- 71 × 16
- 71 × 18
- 71 × 20
- 74 × 20
02
Grille & Blade Options
The grille and blade are selected as part of the airflow, safety and appearance requirement. These are available component references, not fixed configurations for a specific fan size.
Available Grille References
Specifications below follow the factory's grille reference format.
- 340 × 100 × 1.2 mmGrille option
- 430 × 108 × 1.2 mmGrille option
- 430 × 120 × 1.2 mmGrille option
- 500 × 120 × 1.3 mmGrille option
- 500 × 135 × 1.3 mmGrille option
Available AS Blade Options
Light and heavy versions refer to the available blade weight classes in the component library.
- 12 InchAS · 3 Blades
- 16 InchAS · 3 Blades · Light
- 16 InchAS · 3 Blades · Heavy
- 16 InchAS · 5 Blades · Light
- 16 InchAS · 5 Blades · Heavy
- 18 InchAS · 5 Blades · Light
- 18 InchAS · 5 Blades · Heavy
03
Pedestal Tube, Base & Base Cover Options
The pedestal structure affects product height, stability, appearance and carton planning. SF Fan can select from the following tube, base and base-cover options when preparing an order specification.
Tube Assembly Options
Factory tube size and length references, shown in millimeters.
- 38 × 350 + 25 × 280 mm
- 38 × 400 + 25 × 280 mm
- 38 × 420 + 25 × 300 mm
Base Options
Weight options can be selected around the product positioning and stability requirement.
- 1.4–1.5 kg
- 1.8–2.0 kg
- 2.5 kg
- 3.0 kg
Base Cover Options
The base cover is fitted above the base to complete the pedestal fan's appearance.
370 mm 400 mm 430 mm
Component dimensions and weights are available references. They do not indicate a fixed combination or guarantee a particular performance level. Final compatibility is confirmed with the selected model, approved sample and order specification.
04
Confirm the Full Product Specification Before Sampling
Component selection is one part of the project. Electrical setup, functions, branding and packing must be confirmed together so the sample and mass-production order follow the same standard.
Confirm the selected component route together with rated power, speed levels, oscillation and target performance.
Specify the destination country so the motor, capacitor, cord, plug, label and certification plan can be reviewed.
Confirm logo, color, manual, barcode, retail carton and CBU / SKD / CKD packing before final quotation.
Send Your Pedestal Fan Specification
Share your target market, preferred size, quantity, winding preference, voltage, frequency, plug, required functions, branding and packing plan. SF Fan will review the suitable component combination before quoting.
Market & Application Support
Match the Fan to the Consumer and Sales Channel
Household pedestal fans are designed for flexible personal and room cooling. We help buyers choose the size, control package and appearance around how the product will be sold and used.
Homes & Apartments
Adjustable-height airflow for bedrooms, living spaces and everyday household cooling.
Offices & Small Businesses
Portable circulation for desks, reception areas, shops and other smaller commercial interiors.
Retail & Supermarket Programs
Retail-ready color boxes, barcodes, labels and model mixes for seasonal household-appliance sales.
Distributors & Private Labels
Specification-based OEM supply for importers and brands building repeat household fan programs.
Built Around the Complete BOM
Pedestal Fan Components You Can Specify
Airflow, noise, stability, safety and landed cost depend on the complete component set. Each quoted model is tied to the approved specification before production.
Motor & Bearing
Winding material, stator size, bearing structure, thermal protection and target performance are matched by model.
Balanced Fan Blades
3-, 5- and 7-blade PP or AS options can be evaluated for airflow, appearance and target cost.
Safety Grille
Radial or mesh grille structures, wire spacing and finishes are selected for the product and market requirement.
Speed & Timer Controls
Mechanical buttons, timers, remote controls and electronic interfaces are available on suitable models.
Stand & Oscillation
Adjustable pole, locking collar, tilt and oscillation parts are confirmed for stable daily operation.
Cross or Round Base
Base structure, weight, color and foot-pad details are matched to the fan head and stability target.
OEM / ODM Pedestal Fans
Build a Pedestal Fan for Your Brand and Market
Your quotation is prepared around the target market, price level, safety requirement, order quantity and packing method—not a generic model name alone.
Production & Quality Control
Checks Tied to the Approved Pedestal Fan Specification
Quality control starts with the confirmed bill of materials and continues through electrical, mechanical, appearance and packing checks. Exact limits follow the approved model and market standard.
Component Verification
Motor parts, wire, blade, grille, plastic parts, stand, base and electrical components are checked against the order specification.
Safety Checks
Reference household-fan checks include insulation and withstand-voltage testing; applicable voltage, time and limits are confirmed by model.
Temperature & Starting
Temperature rise and low-voltage starting can be checked against the agreed QC plan, including a 0.85× rated-voltage start reference where applicable.
Speed, Balance & Noise
Speed, airflow behavior, blade balance, vibration and operating sound are evaluated against the approved sample and specification.
Oscillation & Stability
Oscillation, tilt, height lock, base stability and control functions are checked before finished units are packed.
Market Documentation

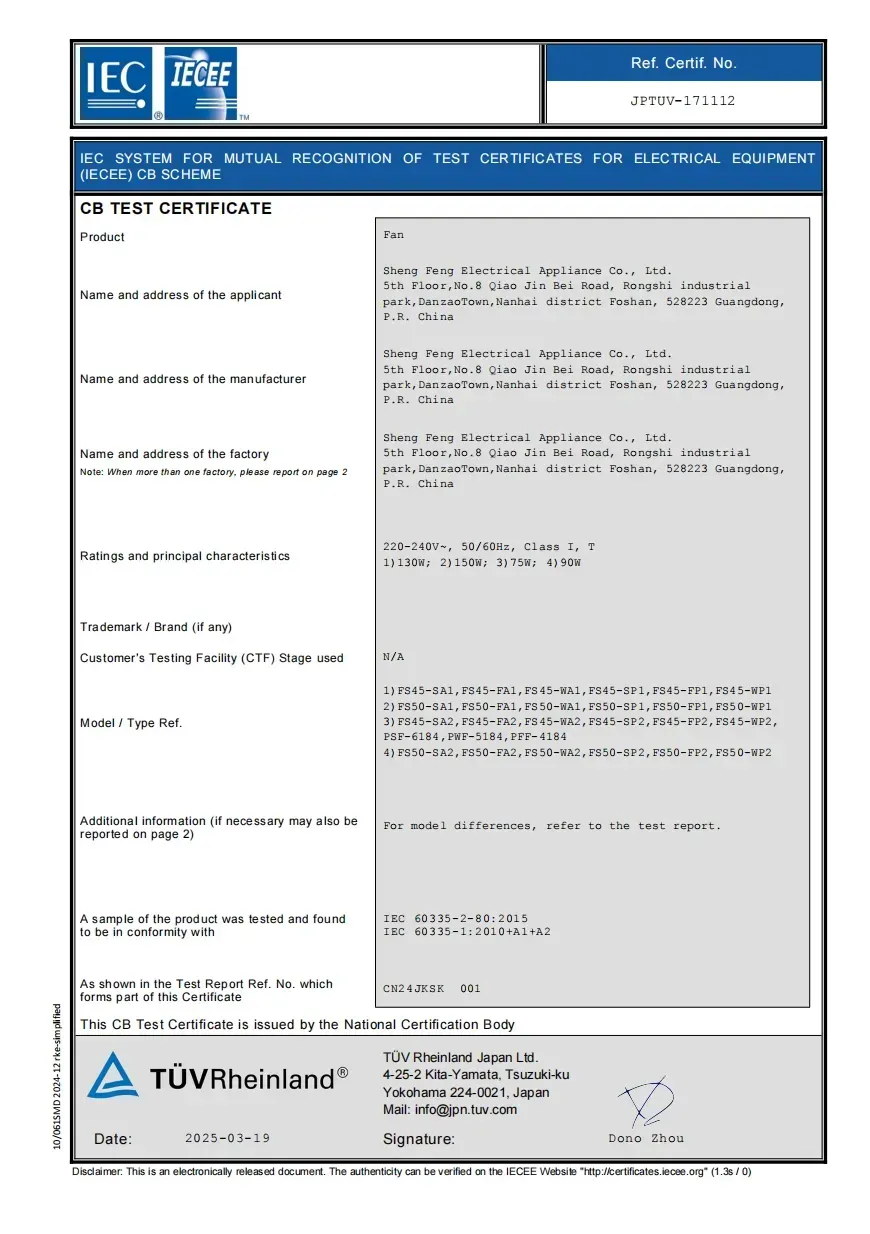

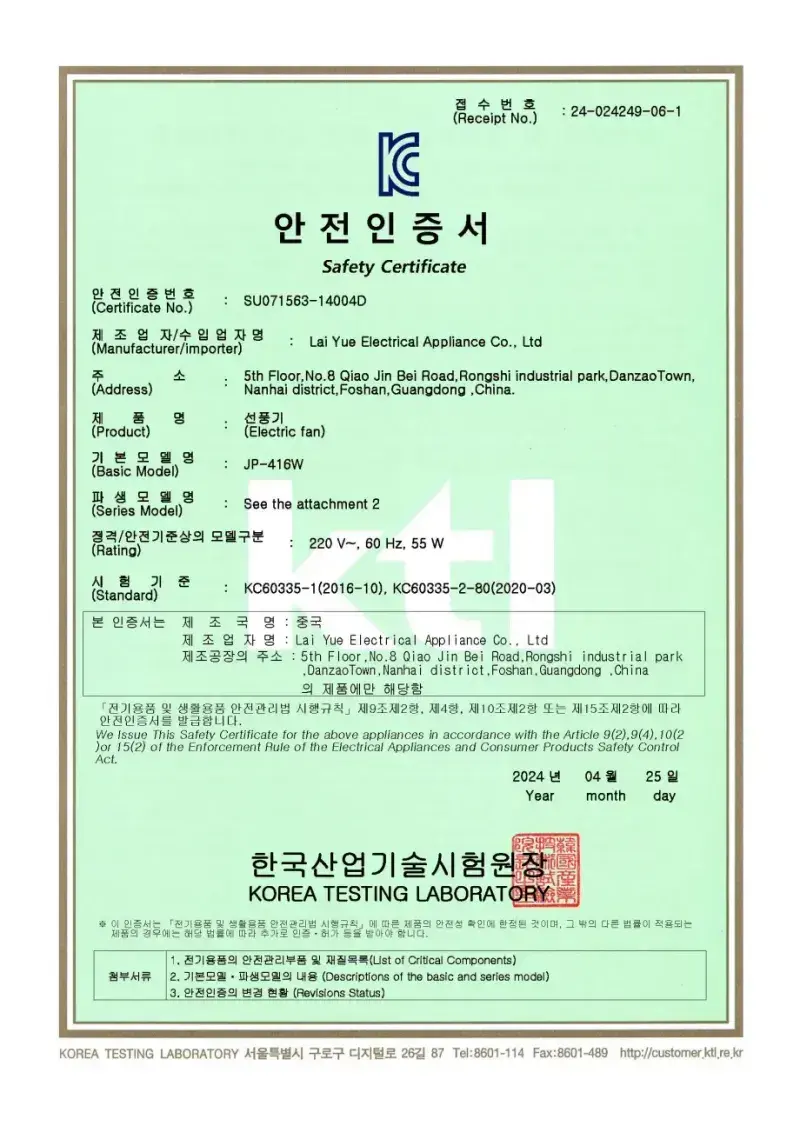

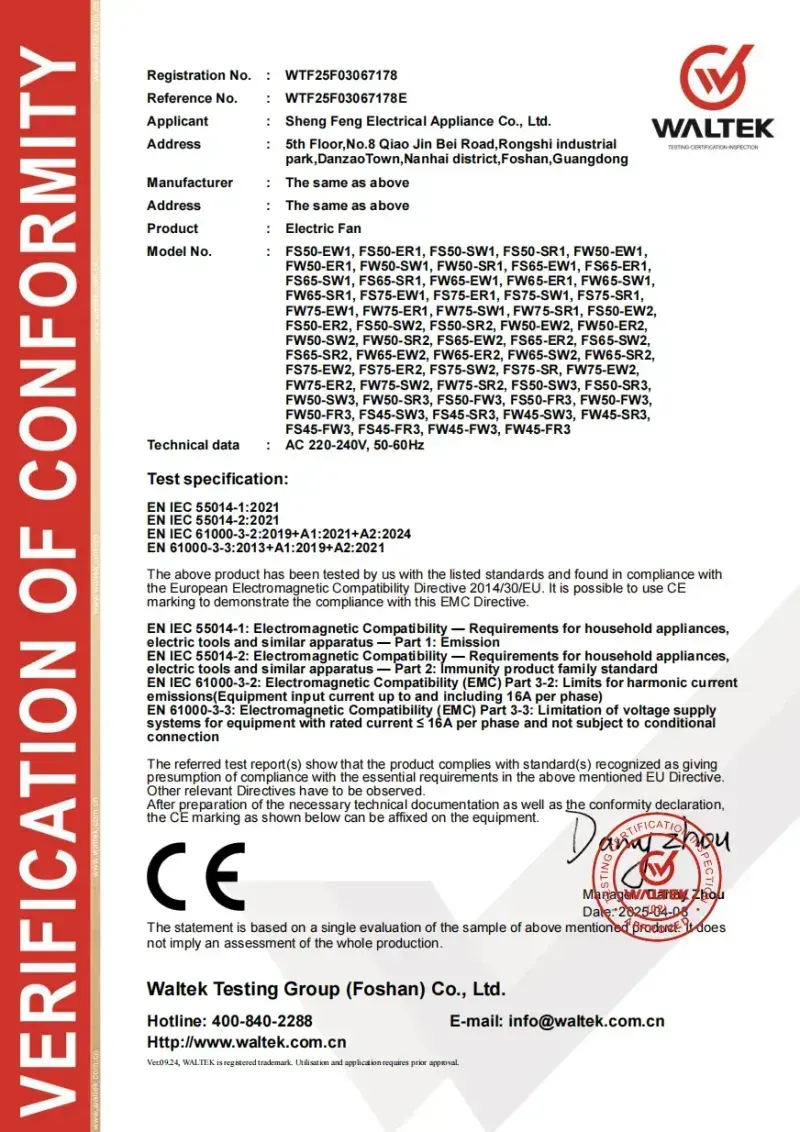

CE, CB, ERP and RoHS options are available for relevant models. Market-specific requirements must be confirmed before quotation.
Order-Based Manufacturing
From Confirmed Specification to Export-Ready Fans
Materials, assembly, inspection and packing are organized around the approved order. Production capacity varies with the fan model, component mix, season and packing method.
≈ 5,000 / Day Off-season production-capacity reference. The final schedule is confirmed after the model mix, quantity, customization and delivery plan are reviewed.
01 / PREPARE
Specification & Materials
Motor, plastic parts, blade, grille, stand, base, controls and packaging are prepared against the approved order.

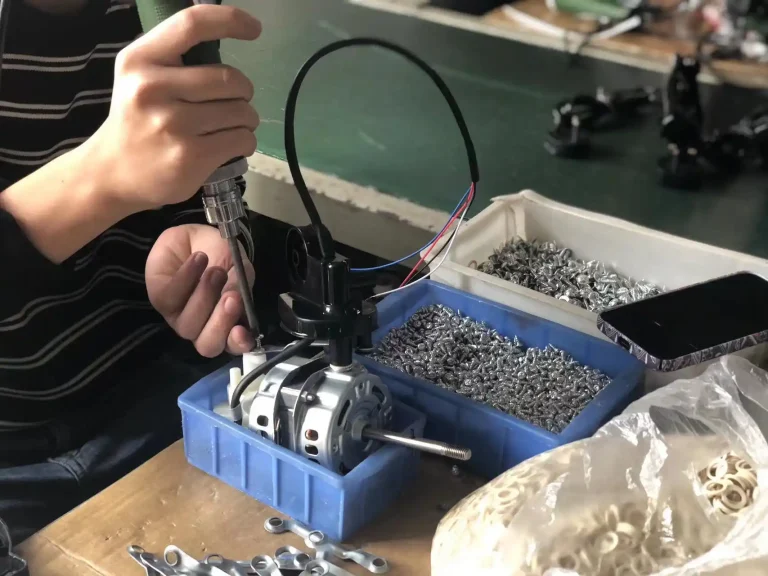

02 / PRODUCE
Assembly & Process QC
Assembly follows the confirmed sample and specification, with checks at the relevant production stages.
03 / DELIVER
Final QC & Export Packing
Finished units are checked, packed under the agreed CBU, SKD or CKD plan and prepared for shipment.
Export Packing & Container Loading
Balance Retail Presentation, Protection and Freight Cost
Pedestal fans contain bulky grilles, poles and bases. We compare retail-ready SKD, master-carton SKD and CKD packing after the product structure is approved.
Retail-Ready PackingCustom artwork, labels, manuals and consumer assembly instructions.
Component ProtectionSeparate protection for motor, grille, blade, pole, base and controls.
Local Assembly PlanningParts grouping and packing lists matched to the buyer's assembly capability.
| 16-Inch Reference | Carton Setup | Approx. 40HQ Qty. |
|---|---|---|
| Retail-ready SKD | 1 set per color box | About 1,800 sets |
| Master-carton SKD | 2 sets per master carton | About 2,200 sets |
| Bulk CKD | Components grouped by type under an agreed protection plan | About 3,800+ sets |
Reference only—not a guaranteed loading quantity. Final quantity depends on the selected grille, blade, base, pole, controls, carton dimensions and packing protection.
How We Work
A Clear Process for B2B Pedestal Fan Orders
Share the product and commercial details first. We then confirm the model, sample, artwork, packing and production requirements before shipment.
Send Requirements
Target market, size, controls, voltage, frequency, plug, quantity, price target and packing preference.
Confirm Configuration
We match the motor, blade, grille, stand, base, branding and compliance needs to the request.
Approve Sample & Order
Confirm appearance, function, performance, retail artwork, packing and commercial terms.
Produce, Inspect & Ship
Production follows the approved specification, with QC and export packing before shipment.
Pedestal Fan FAQ
Questions From Importers, Distributors and Brands
These are the main technical and commercial points we confirm before preparing a model-specific quotation.
What is the MOQ for household pedestal fans?
Our standard MOQ is 1,000 pieces per model. The exact MOQ can vary when an order requires a custom color, logo, control panel, component combination or packaging.
Can I request a sample before a bulk order?
Yes. A sample can be prepared after the model and electrical specification are confirmed. Sample cost, courier charge, preparation time and any refund arrangement are confirmed before dispatch.
Which details are needed for an accurate quotation?
Please send the required size, reference photo or preferred model, target market, voltage, frequency, plug, control type, quantity, certification need, branding and packing preference.
Can the fan and retail packaging be customized?
Yes, depending on the model and order quantity. We can evaluate the motor, blade, grille, color, logo, rating label, control panel, power cord, plug, manual and retail carton.
Do you offer SKD or CKD packing?
Yes. We can evaluate CBU, SKD and CKD packing according to the fan structure, destination market, container target and the buyer's local assembly capability.
What warranty and spare-parts support do you provide?
The standard warranty is one year. We generally provide 0.5% spare parts and troubleshooting guidance. If replacement parts cannot resolve a covered manufacturing issue, we can provide a replacement motor according to the agreed order terms.
Which certifications are available?
CE, CB, ERP and RoHS options are available for relevant models. Market-specific certification requirements must be confirmed before quotation and production.
Are these the same as industrial pedestal fans?
No. This page covers mainly 10–18 inch household and light-commercial pedestal fans. For heavy-duty 20–30 inch metal models, see our industrial pedestal fan range.
Ready to Source Pedestal Fans for Your Market?
Send the size, quantity, voltage, frequency, control preference and destination market. We will prepare a suitable specification and quotation.
